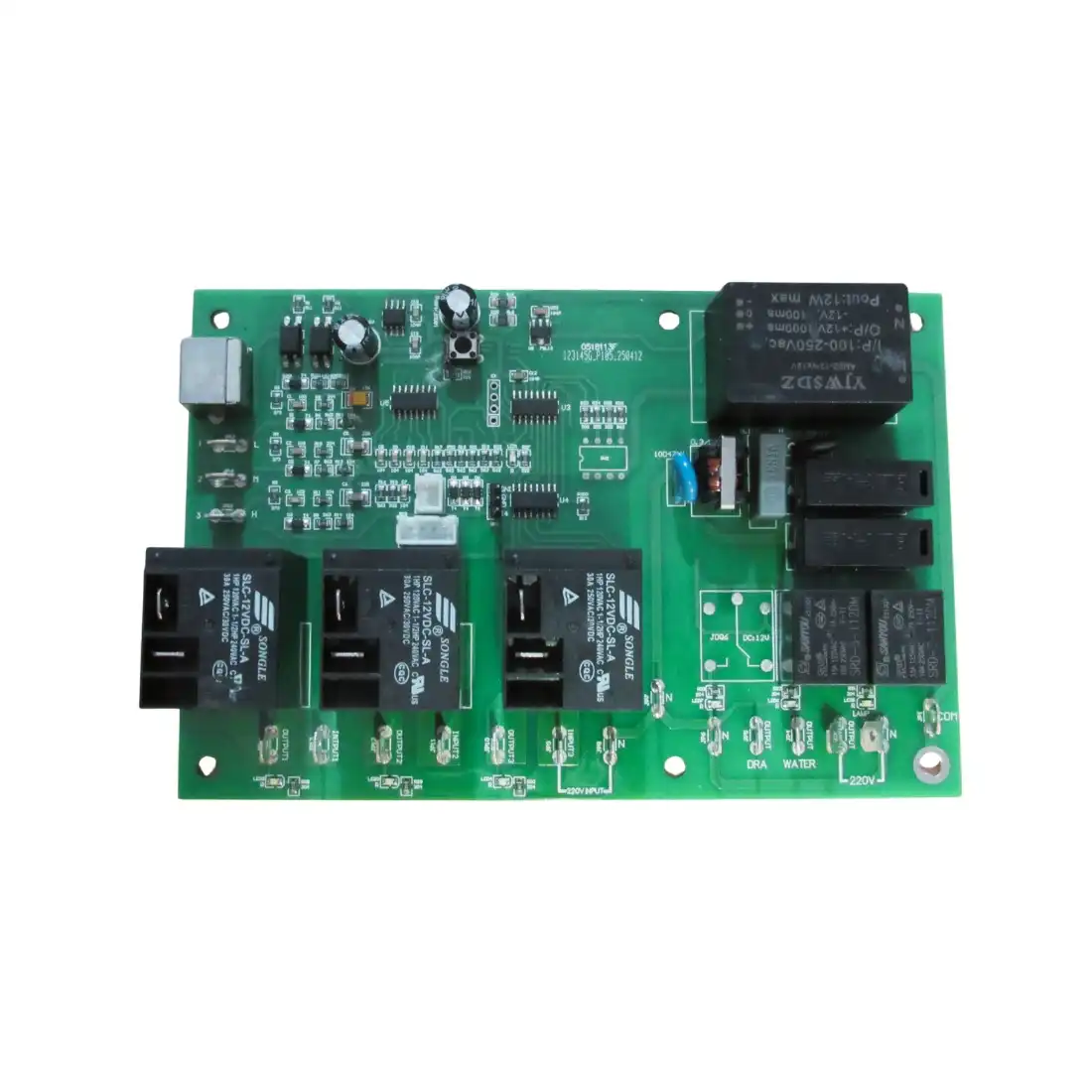

Product image of Premium 9KW Sauna Steam Machine Circuit Board /Control Motherboard for Sauna & Steam Bath CON-00102PART2
Product thumbnail
Product thumbnail

Premium 9KW Sauna Steam Machine Circuit Board /Control Motherboard for Sauna & Steam Bath CON-00102PART2

( 0 ) Reviews
Rs 9,325.00
Shipping is calculated at checkout

Product Description

Premium 9KW Steam Machine Circuit Board in Nepal. Heavy-duty control motherboard with Songle 30A relays for sauna & steam bath generators. Fast delivery.

  • 9KW Control Board: Heavy-duty main motherboard built for 9KW sauna steam generators.
  • Songle 30A Relays: 3 high-capacity power relays to safely manage heavy heating element loads.
  • 12W Power Module: YJWSDZ unit accepting 100–250VAC input with stable dual $+12\text{V}$/$-12\text{V}$ DC outputs.
  • Sanyou 15A Relays: 2 secondary relays to smoothly handle system auxiliary functions.
  • Drain & Water Terminals: Labeled "DRA" and "WATER" ports for automated drainage and inlet valve control.
  • Standard 220V Input: Dedicated "220V INPUT" section ideal for standard Nepali voltage setups.
  • Smart Panel Hookup: Multi-pin connector plug, logic IC chips, and status LEDs for digital display syncing.

High-Performance Control Board for 9KW Steam Generators

Upgrade or repair your sauna setup with this professional-grade 9KW Steam Machine Circuit Board. Specifically engineered to handle the rigorous power demands of steam bath generators, this motherboard serves as the central brain of your system, ensuring reliable operation, safety, and consistent steam production.

Key Technical Features:

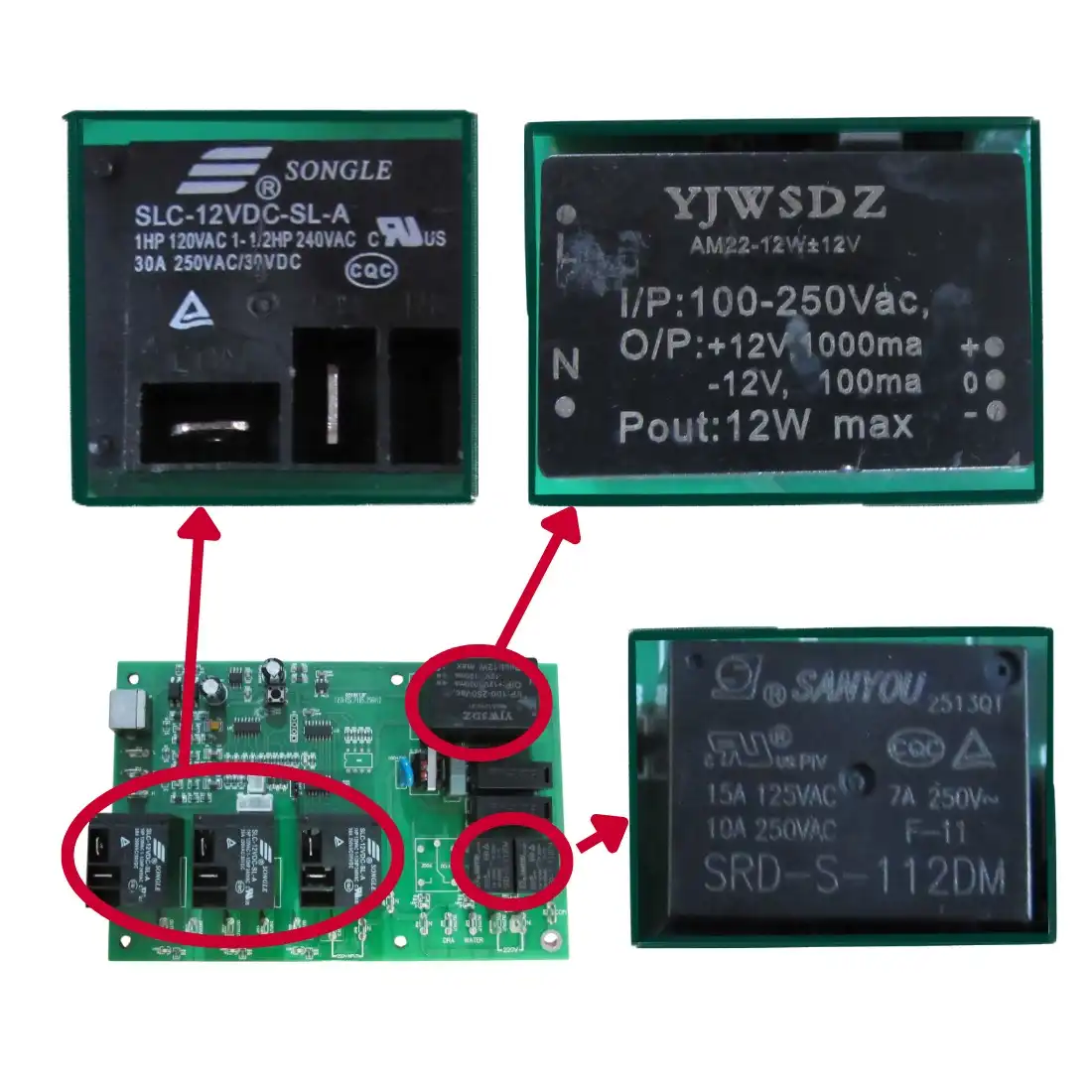

  • Heavy-Duty Relay Switching: Equipped with three premium Songle SLC-12VDC-SL-A relays rated at 30A (250VAC/30VDC) to safely manage high-current loads across heating elements.

  • Advanced Power Supply: Features a YJWSDZ AM22-12W±12V power module supporting a wide input range of 100-250VAC, delivering stable dual DC outputs ($+12\text{V}$ at $1000\text{mA}$ and $-12\text{V}$ at $1000\text{mA}$) to prevent voltage fluctuation damage.

  • Auxiliary Component Controls: Integrated with Sanyou SRD-S-112DM relays (15A 125VAC / 10A 250VAC) dedicated to regulating crucial auxiliary functions like Drainage (DRA), Water Inlet Valve (WATER), and lighting.

  • Flexible Voltage Configuration: Perfectly optimized for standard 220V/380V setups commonly used in Nepali commercial spas and residential installations.

Why Choose This Circuit Board?

  • Durability: Made with thick, heat-resistant green PCB substrate designed to withstand humid spa environments.

  • Seamless Fit: Direct replacement motherboard for most standard 9KW digital steam bath machines.

  • Safety First: Built-in safeguards protect your heating elements from dry burning by accurately processing water level sensor signals.
